Three in One Access Controller

AC + Router + PoE Switch

FAC109-PoE-MR

1 × Gigabit WAN Port

High-speed internet connectivity with advanced traffic prioritization.

8 × Gigabit PoE+ Ports

30W per port (240W total) to power your IP devices with auto-sensing technology.

PoE Auto-Detection

Automatically detects and supplies power to compatible devices.

VLAN Support

Advanced network segmentation for improved security and performance.

                                           8 x GE PoE Ports                             1 x GE  WANPort

Three Devices in

Consolidate your network infrastructure with our powerful all-in-one solution

AC,Router,Switch  All in One AC

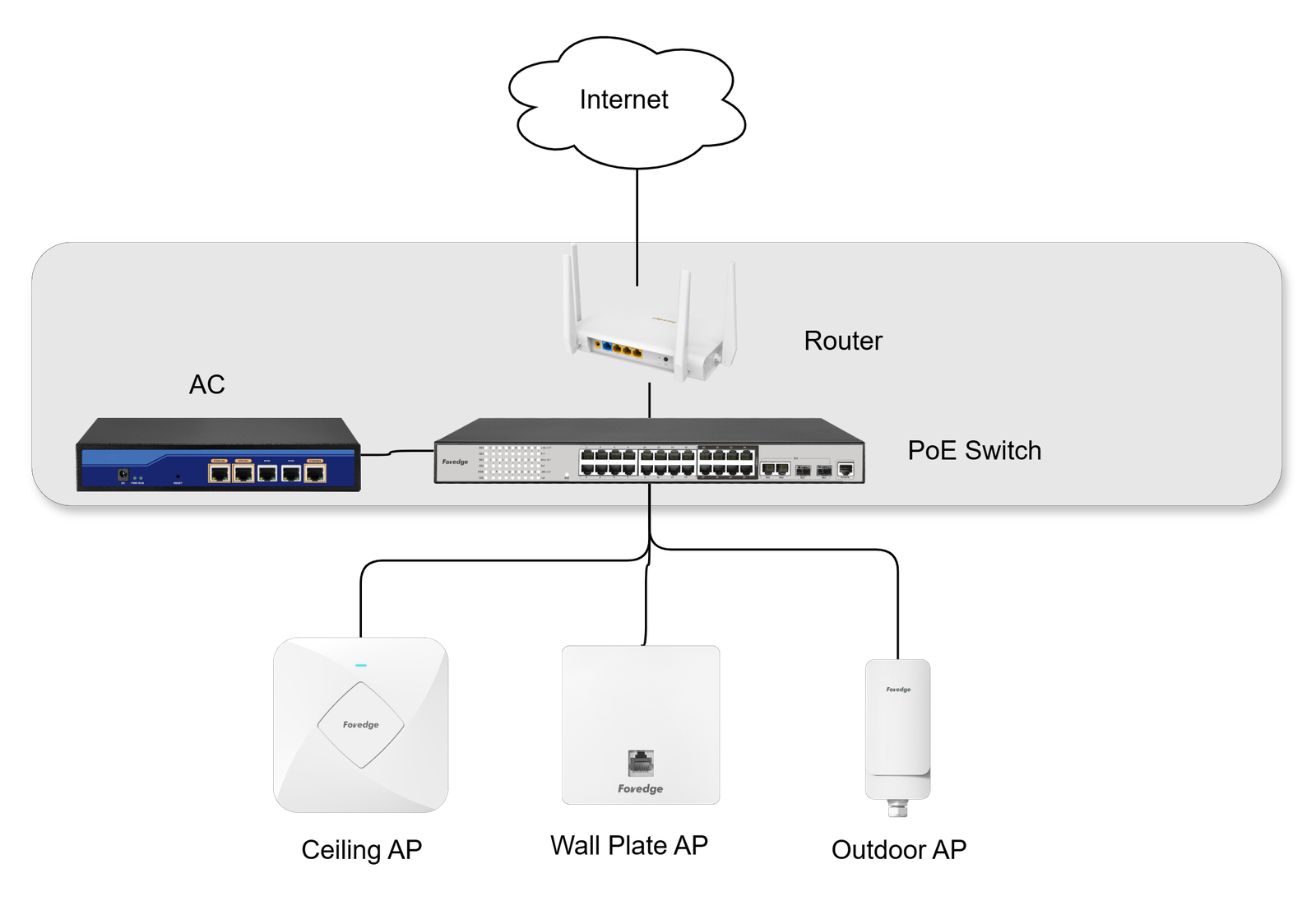

Tranditional Router Networking Solution

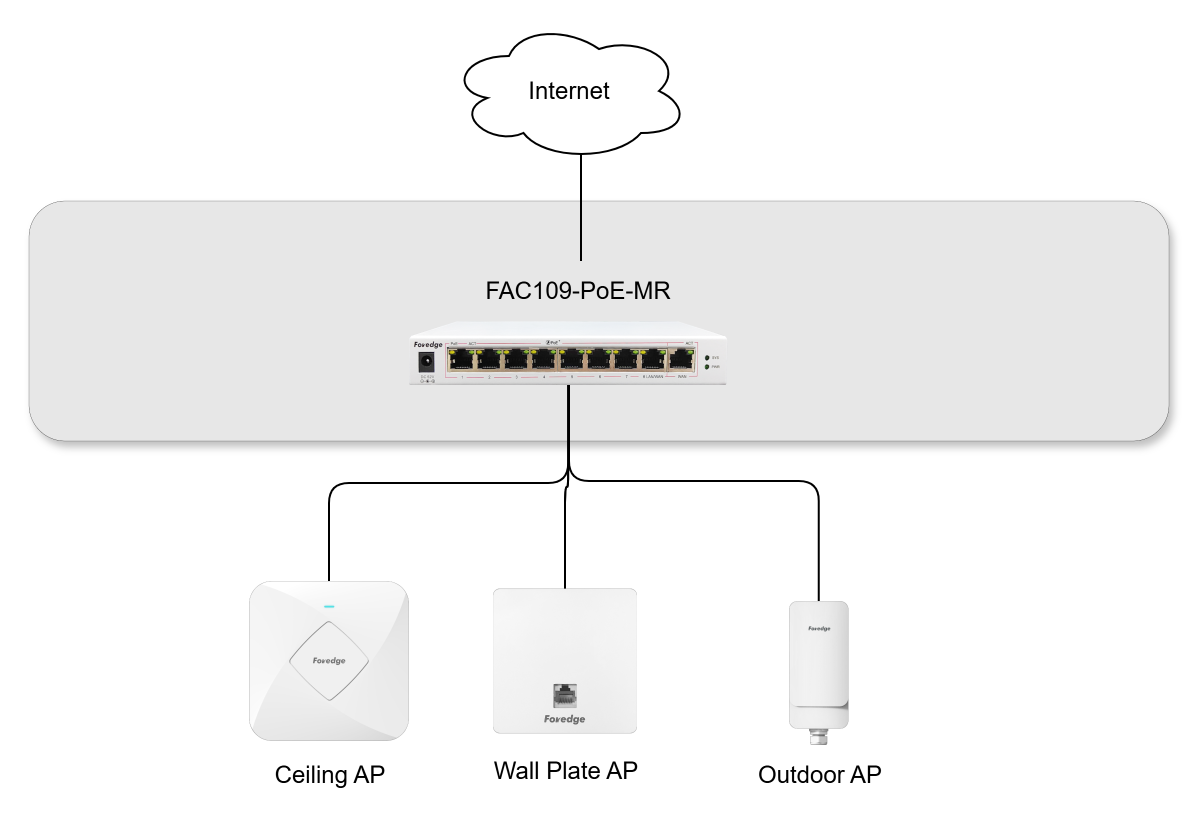

FAC109-PoE-MR Networking Solution

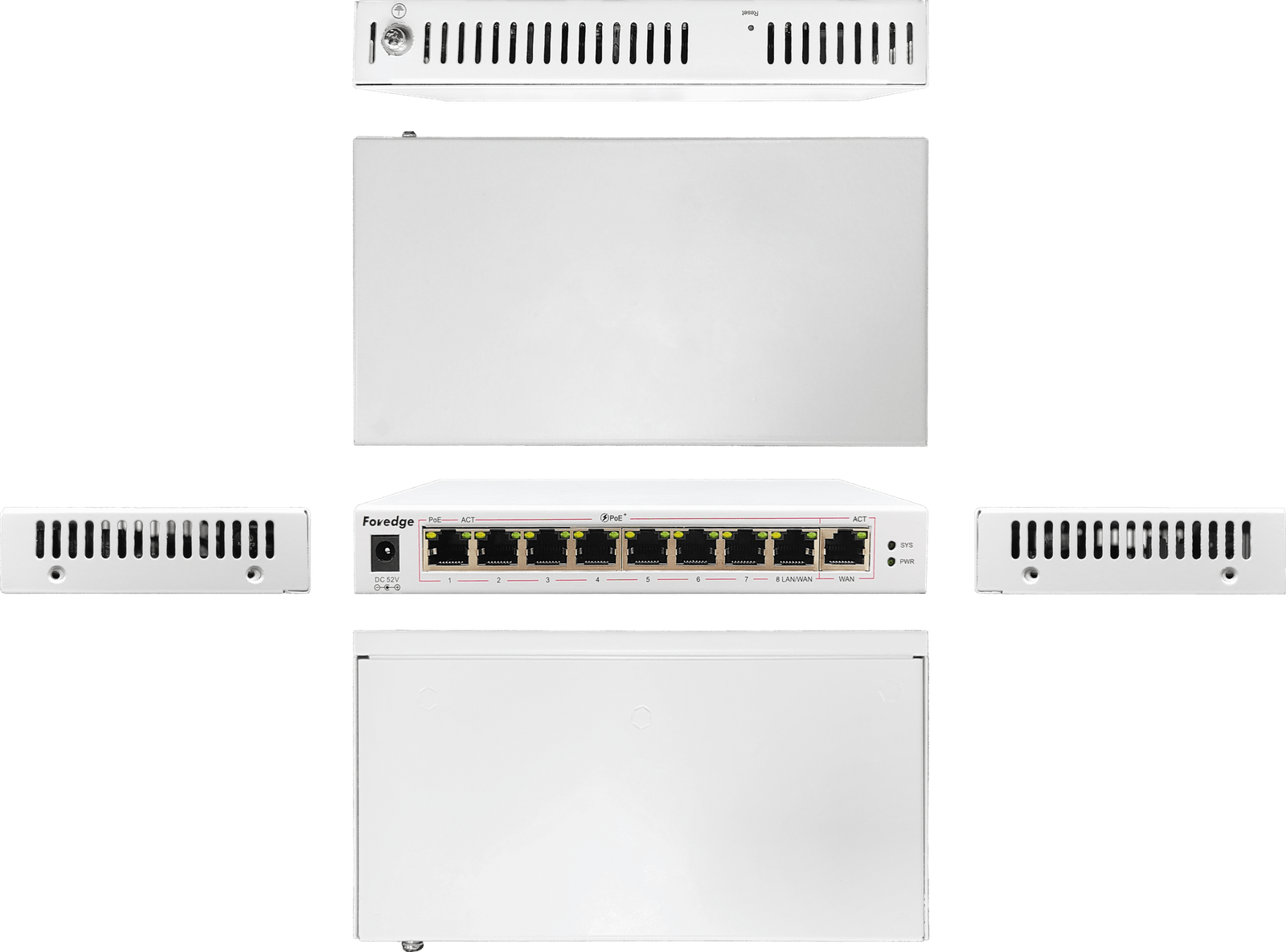

Light Weight & Compact Design

Enterprise-grade performance in a space-saving form factor

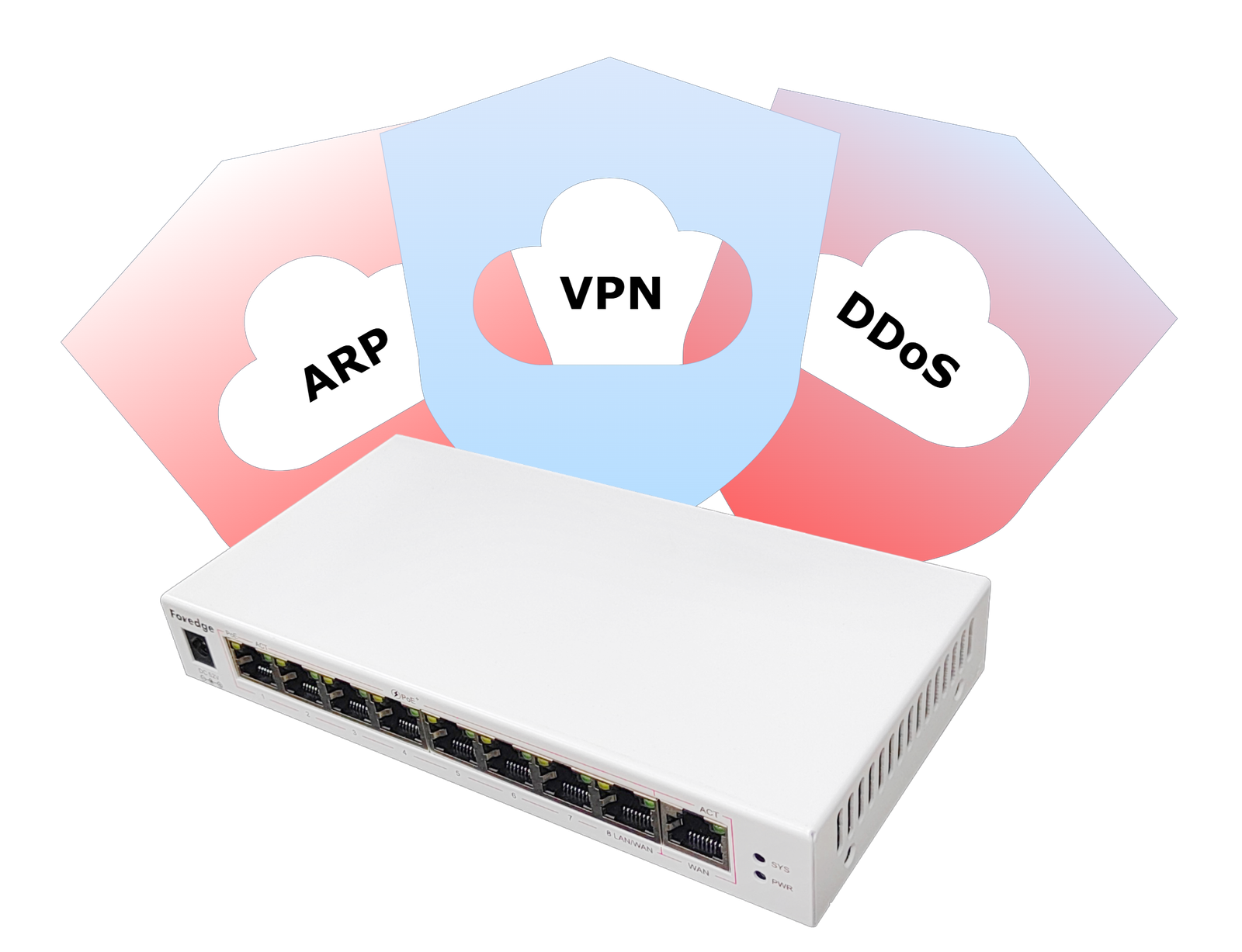

Total Threat Defense

Guard your privacy, availability, and local network.

VPN

PPTP & L2TP

DDoS

Ensures service stays up

ARP

Blocks connection hijacking

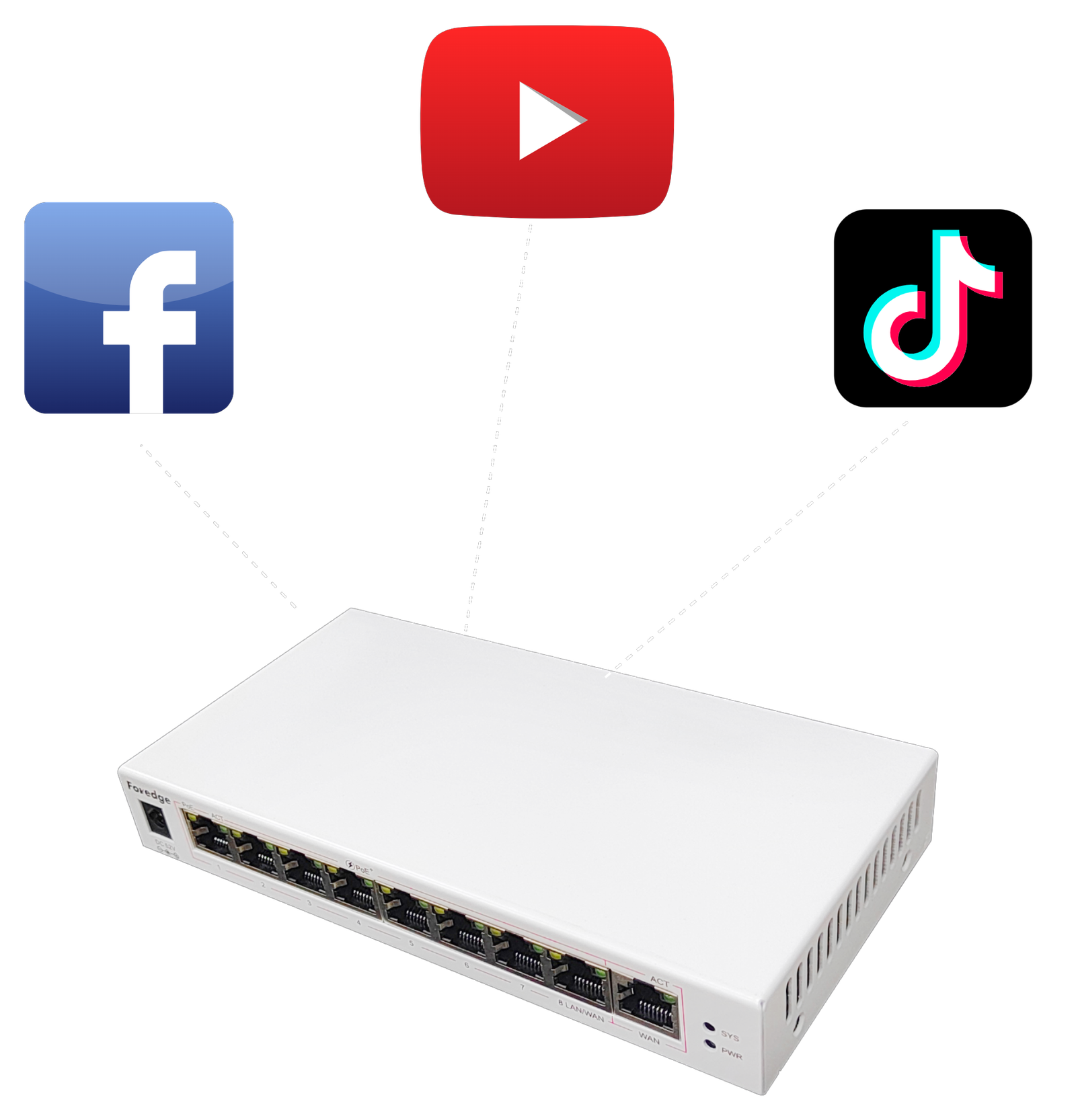

APP Control

Keep your kids safe online by easily managing their screen time, blocking inappropriate apps, and promoting healthy digital habits

Parental Control

Have any questions? Contact us to learn more.
Contact us

Sepcification

Model

FAC109-PoE-MR

Bandwidth

Maximum bandwidth: 2Gbps; Recommended bandwidth: 1Gbps

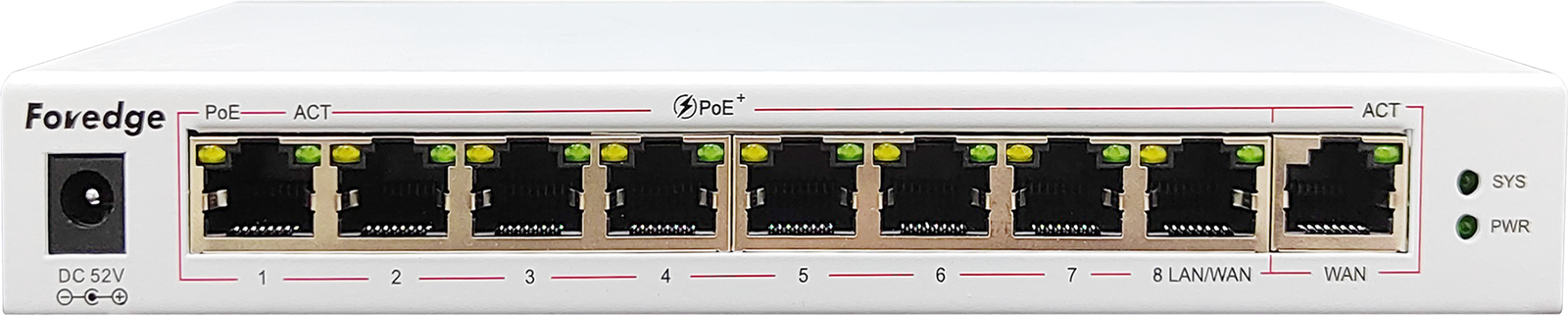

Port

• 1 * 10/100/1000M RJ45 WAN Port
• 1 * 10/100/1000M RJ45 LAN Port/WAN Port(Support PoE)
• 7 * 10/100/1000M RJ45 LAN Ports（Support PoE）

LED

• RJ45 Port：Link/Act
• Front panel：SYS、Power

Input power supply

• DC52V/2.5A

PoE

• Compliant with IEEE 802.3af and IEEE 802.3at standards

• Single port maximum output 30W

• Maximum output 120W

Network protocol

TCP/IP、DHCP、ICMP、NAT、PPPoE、SNTP、HTTP、MQTT、DNS、DDNS

Running state

• Basic device information

• Interface information (including connection status and flow rate)

• Access cloud platform status

• Hardware resource utilization (CPU, memory, PoE)

• Real-time traffic information

• Network topology

• WAN status

• LAN status

Network configuration

• WAN Settings (DHCP, Static IP, PPPOE), support dual WAN port backup redundancy, bandwidth overlay, traffic load balancing

• LAN Settings

• IPV6 Settings

• DHCP

• Network diagnostics

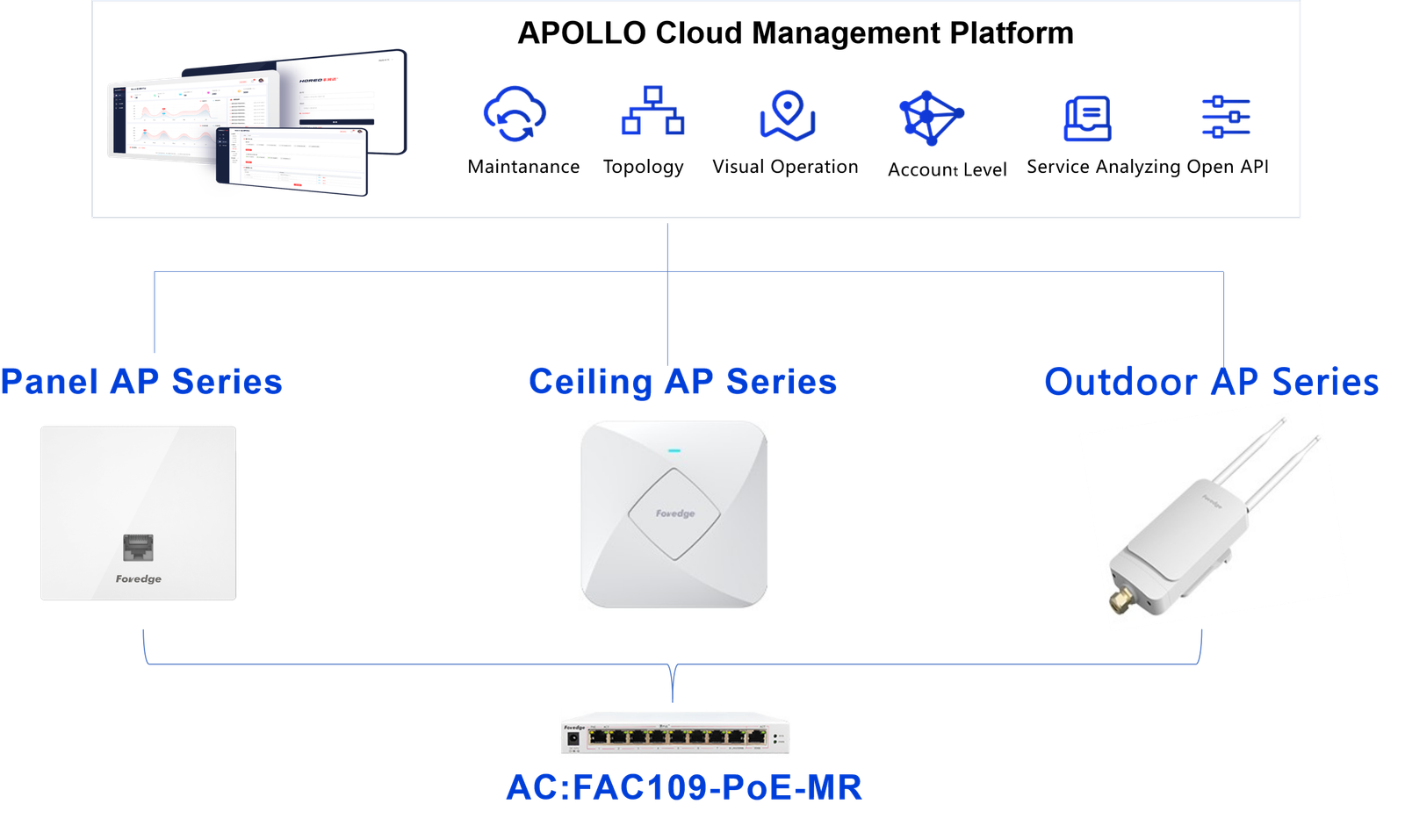

AP centralized management

• Centralized AP management: Configure templates, AP access lists, load balancing, intelligent roaming, RF tuning, wireless network mode, and upgrade management

• AP Settings, unified management of 50 Fengrunda AP products;

• Plug and play;

Terminal management

Mask and rate limit terminal devices that access aps

Typical tape load

100 units

Safety management

• Support Internet filtering (IP filtering, MAC filtering, port filtering, domain name filtering)

• Support for application group filtering (shopping, video, games)

• Supports backup redundancy for dual WAN ports

Access Control Lists (ACLs)

• Protect against DoS attacks

VPN management

• Supports PPTP VPN and L2TP VPN

Authentication management

• Web authentication, one-click Internet access, can provide commercial advertising marketing through the Portal page;

• SMS authentication, which meets the requirements of real-name authentication, and can conduct secondary marketing based on mobile phone number;

Advanced function

• QoS
• DDNS

System tool

• System time

• User Management

• System logs

• Backup/restore

• System upgrade

• Restart the system

Heat dissipation mode

• Natural heat dissipation

Use environment

• Operating temperature: -20℃– 50℃,

• Operating humidity: 10% — 90%RH non-condensing

• Storage temperature: -40℃–70℃,

• Storage humidity: 5%–90%RH non-condensing

Overall dimension

185(W)x100(D)x28(H) mm
