Wi-Fi 6
MESH Router
Seamless Coverage, No More Dead Zones
FME-AX3000-HM
Ultimate WiFi Performance
Designed to deliver reliable connectivity in environments where standard networking equipment would fail
2976Mbps Speed
Combined 2.4GHz (574Mbps) and 5GHz (2402Mbps) bands deliver ultra-fast connectivity
Easy Mesh
Create a seamless whole-home WiFi network with simple mesh technology
160MHz Bandwidth
Wider channels for faster data transmission and reduced interference
Blazing Fast WiFi 6
Dual-band Wi-Fi with speeds up to 3000Mbps
Single Network Name
Enjoy seamless roaming with a single SSID throughout your home. Your devices automatically connect to the strongest signal.
Easy Expansion
Simply add additional nodes to extend coverage. The system automatically integrates new units with zero configuration.
Easy Network Management
Control and monitor your network from anywhere with our intuitive cloud platform and mobile app.
Remote configuration and monitoring
Parental controls and access scheduling
Real-time network analytics
Guest network setup
Interested in a demonstration? Get in touch now!

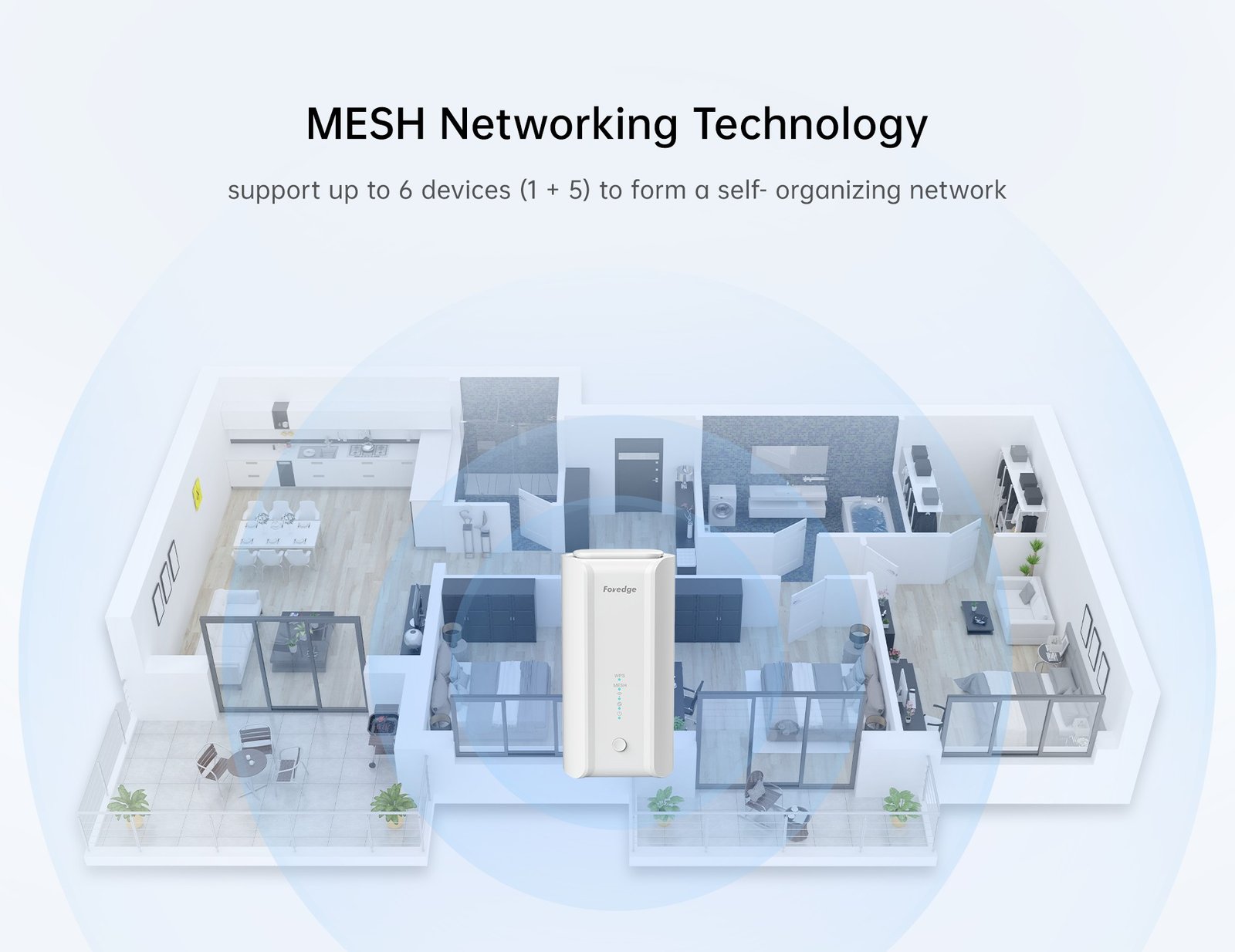

Smooth Seamless Coverage Transition
Experience uninterrupted Wi-Fi throughout your home with effortless signal switching and reliable coverage in every room

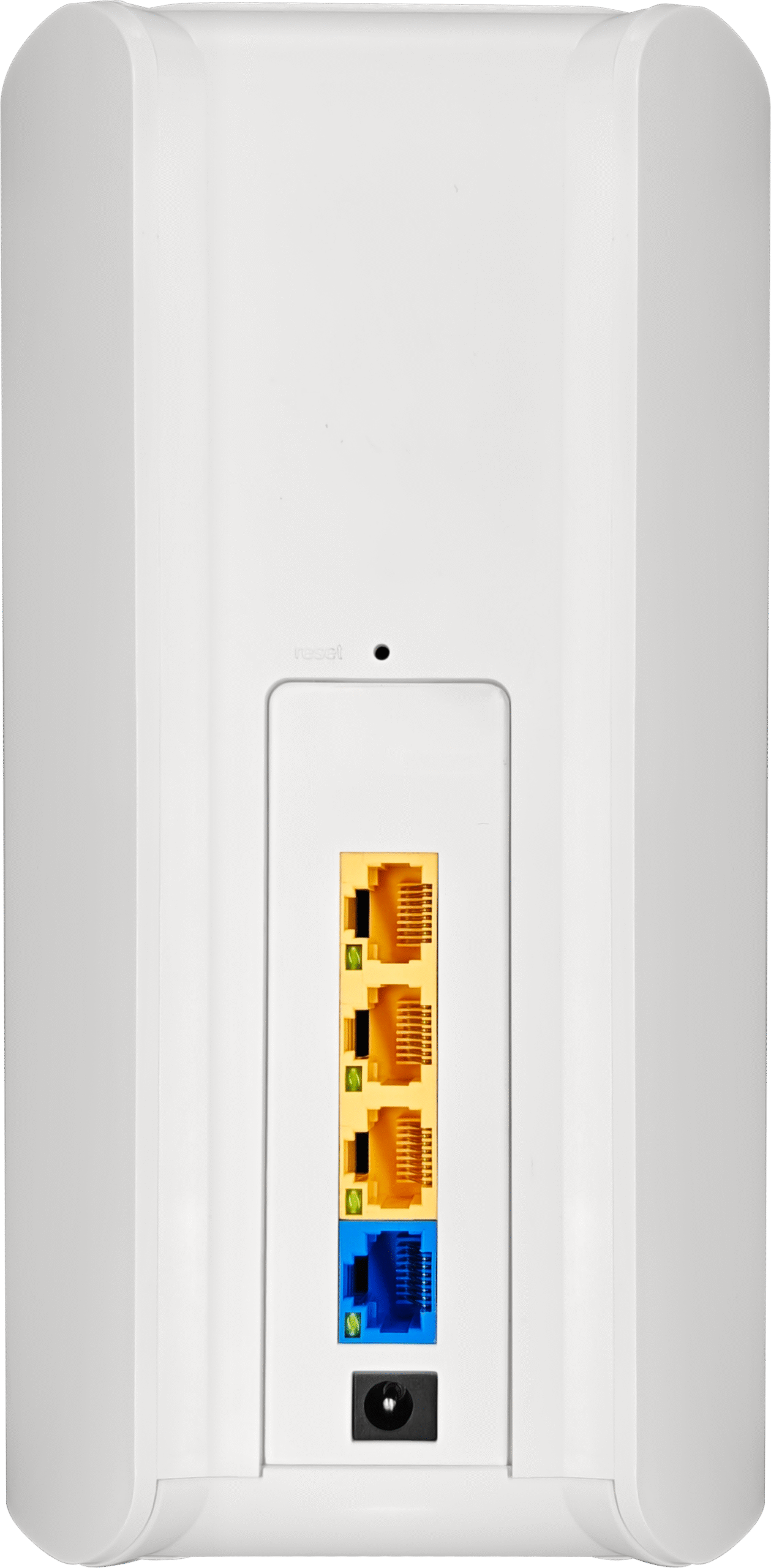

1 x Power
1 x WAN(GE)
3 x LAN(GE)
MU-MIMO
MU-MIMO allows simultaneous data transmission to multiple devices
OFDMA
OFDMA divides channels for efficient multi-device communication
Devices wait less time for their data transmission turn
Simultaneous data transmission to multiple devices
Reduced latency in high-density environments
Channel divided into smaller resource units
Have any questions? Contact us to learn more.
Sepcification
| Model | FME-AX3000-HM | |||
| Hardware feature | ||||
| Protocol standard | IEEE 802.11a/b/g/n/ac/ax / IEEE 802.3 / IEEE 802.3u / IEEE 802.3x | |||
| Port | 1*10/100M/1000M WAN port, supporting Auto MDI/MDIX 3*10/100M/1000M LAN ports, supporting Auto MDI/MDIX | |||
| Button | Reset/WPS (long press for 5 seconds to reset, short press for 1sWPS) | |||
| LED | 5×Green Led | |||
| Antennas | 4×5dbi external (non-detachable) 1×5dbi built-in (non-detachable) | |||
| Power | DC 12V/1.5A (Outer diameter: 5.5mm, Inner diameter: 2.1mm) | |||
| Wireless feature | ||||
| Wi-Fi Settings | Dual-band integration Simultaneous operation of 8 SSIDs Wireless black and white list Guest network WPS Isolation of SSIDs TWT | |||
| 2.4G Frequency band | 2412~2472MHz (Channel：1-13) | |||
| 5G Frequency band | 5180~5350MHz (Channel：36-64） 5490MHz~5730MHz (Channel：100-144) 5735MHz~5835MHz (Channel：149-165) | |||
| Wireless transmission speed | 2.4G：574Mbps 5G：2402Mbps | |||
| MIMO | 2.4G：2×2 MU-MIMO 5G：2×2 MU-MIMO | |||
Transmission Power | 2.4G：20dBm±2dB 5G：23dBm±2dB | |||
| Working modes | Router Bridge WDS | |||
| Radio Settings | Countries/regions setting Channel setting Bandwidth setting Minimum signal strength for connection Wi-Fi transmission power setting Wi-Fi Scheduler Spatial multiplexing Greenfield mode | |||
| Easy Mesh | Support automatic election of the master node 3 levels of device cascading | |||
| Software feature | ||||
| Network Settings | Supports the connection types of WAN interfaces: PPPoE, dynamic IP, and static IP, MAC address cloning, IPV6 Settings, and IPTV Settings | |||
| Status Monitoring | Equipment information(model, firmware version, SN 、 IP 、MAC 、Uptime 、CPU usage 、memory usage) Network monitoring (uplink rates 、downlink rates, connection duration) | |||
| Application Settings | Speed limits IP and MAC PPTP/ L2TP VPN DDNS | |||
| Equipment Upgrade | Local firmware Upgrade Online firmware Upgrade | |||
| System management | NTP, System logs, Kernel logs, Configuration backup, Reset, Restart | |||
| Others | ||||
| Dimension | 112mm×108mm×213mm | |||
| Working environment | Operating temperature: -10℃ to 50℃ Storage temperature: -40℃ to 70℃ Operating humidity: 10%-90%RH (non-considering) Storage humidity: 10%-90%RH (non-considering) | |||
